Our Top Products Audiometers And Audiology Diagnostics Equipment

Features:

• Narrow & Speech band masking also available with wide band masking.
• Supplied with HD-01 Headphones (Made in Germany) and Global Bone vibrator as standard, Can accept both 8 and 10 ohm headphones.
• Optional TDH 39/49 and DR 51 available at extra cost.
• TONE DECAY test available along with pulse tone & +10dB facility.
• Digital calibration. (Can be calibrated from front panel without moving any part inside the audiometer.)
• With USB port for computer adaptability to operate through computer. Software provided Free of charge.
• 12 months warranty (Accessories not included) Free Field option included.
• AC Left & Right, BC Left & Right, Free field, Masking. Calibration can be done separately.

Switches:

• SAL
• AUTO AUDIOMETR
• Pulse tone
• Patient Data Saving (500 patients)
• Warble Tone
• Interrupt Lock
• SISI
• Insert Masking
• Optional ear muff rated at NRR 30
• 1)Rotary Switch for Puretone and masking attenuator. 2) Interrupt. 3) Interrupt lock.
• 4) I/P-Selection of Puretone-Speech M-Speech CD-SISI-ABLB-TD-Warble-Puretone
• 5) O/P- Selection of ACL ACR-BCL-BCR-F.FL-F.FR-ACL. 6) Pulse tone. 7) Talk Forward.
• 8) Masking Select-W.B, N.B. S.B. 9) ST/SP: Start stop for Sisi,TD and ABLb. 10) L/R Toggle 11)L+R
• 12) Insert Masking 13) Frequency Up And Down 14) Masking

"A portable audiometer designed for schools, industries, and primary medical practices, where fast hearing screenings are needed.

• Weighs less than 1.6 kg/3.5 lbs
• Battery status indicator
• Operates with 3 AA batteries
• Dedicated carrying bag
• AS608 uses 3 AA batteries or external power, lasting 6 months.

VRA Screen is a digital VRA device. As with VRA201, you present the sound with the audiometer. But instead of animating a toy, you present the visual reward via 1-3 screens, depending on your setup.

• Processor: Intel Core i7 or AMD Ryzen 7 (or higher)
• Graphics Card: NVIDIA GeForce RTX 30 series or AMD Radeon RX 6000 series
• RAM: 16GB DDR4 (minimum)
• Storage: 512GB SSD (Solid State Drive) or higher

"The PA5 is a portable audiometer primarily used for conducting hearing tests in various environments. Its purpose is to assess individuals' hearing abilities quickly and accurately, making it valuable in clinical settings, schools, workplaces, and other locations where hearing screenings are necessary."

Portable Design: Compact and lightweight for easy transportation.

• Flashing Light Stimulation
• TDH39 Audiometric Headphone (Optional)
• Robust, Lightweight
• Standard AA Batteries
• Automatic Battery Switch
• Automatic Battery Indication

Specification:

• Storage space for 500 patients
• Portable: option to run on AA batteries
• Lightweight with optional carrying bag
• Weight: 1.3 kg / 2.9 lbs
• Compact footprint: 30x23x9 cm, 12x9x4 inches
• Portability: Excellent due to its lightweight design
• Office space suitability: Ideal for limited office space due to its compact size

Specification:

• Starts in a few seconds
• Easy to use
• Fast masking on/off
• 5" display
• CD, MP3, live voice, and built-in speech materials.

Specification:

• Full PC-integration (true hybrid)
• Extensive diagnostic test battery
• Large 5,7’’ adjustable high resolution graphical color display
• Internal storage for 500 patients/50,000 test sessions
• Integrated pre-recorded speech
• Multiple user settings (protocols)
• Direct print options
• Compact and portable design (35 x 29 cm / 14 x 11 inch.)

Specification:

• Full clinical test battery with dedicated screen layouts.
• Pre-programmed, user-defined, or automated test sequences.
• Patient counseling tools.
• High-frequency audiometry up to 20 kHz.

Specification:

• Customizable user interface
• High Frequency (up to 20kHz)
• Professional appearance
• Built in amplifiers
• Wall mounting option

Specification:

• The headset audiometer only weighs 500 grams including the patient response.
• Randomized frequency order for reliable results and no bulky equipment to manage.
• Test at scale with automated tests and plug-and-play functionality

Specification:

• Ergonomic design for comfort and ease.
• Auto white balancing for instant use.
• Single-button control for full ear assessment.
• 90˚ angle view for simultaneous observation.
• Compatible with Viot™, Affinity2.0/Equinox2.0, Callisto™ Suites, and Windows®10.
• Fully integrates with Noah and OtoAccesss™ databases.

Specification:

• Adept as a portable audiometer
• PC-based testing
• No need for a power supply - connect to a USB port
• All-in-one - from audiometry to fitting of hearing devices
• Lightweight - only weighs 565 g
• Customizable test setups and report templates
• Visual and auditory counseling tools
• Digitized word lists from PC hard-drive
• Audiogram historical comparison overlay
• High Frequency Audiometry

Specification:

• 10" adjustable display and HDMI output.
• Reflex tests and reflex decay.
• Direct printing to PC printers.
• User-defined protocols.
• 226 Hz tympanometry

Audiometric Tests :

• Pure-Tone Audiometry with bone and air conduction, talk through, masking, free field and much more.
• Play audiometry MAGIC: Multiple-Choice Auditory Graphical Interactive Check

Speech tests in multiple languages :

• SUN: Speech understanding in Noise screening test
• UST: Universal Speech Test adaptable to different languages
• MATCH: Mainzer audiometric test for children - image based speech test for children from 2-5 years.
• MAUS: screening test for auditory perception and processing orders for children from 6- 11 years .

INPUT/OUTPUT :

Two set of connectors on the rear panel: one for cables coming from the audiometer/PC and the other one for connecting the detachable parts:

• Monitor headphone (3.5mm plug).
• Talk forward microphone (3.5mm plug),
• Desktop microphone (3.5mm plug).

OPERATOR INTERFACE :

• 50 buttons (30 with built-in LEDs) with single specific audiometric function
• 4 configurable buttons
• 2 capacitive interrupters
• 2 knobs

POWER SUPPLY :

• USB powered Power consumption: 5 Vdc, 0.25 A

MECHANICS :

• Size (WxDxH): 36 x 27 x 4 cm / 14.2 × 10.6 × 1.6 in
  Weight: approx. 1.2 kg / 2.6 lbs

INCLUDED PARTS :

• USB connection cable, 2 x stereo audio cables, 1.8m, 3.5mm plug - 3.5mm plug, 1 x mono audio cable, 2m, 3.5mm plug - 6.35mm plug, User manual

MODELS :

• Basic: only PTA – AC
• Plus: only PTA – AC / BC
• Speech: PTA & Speech – AC / BC

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• Masking: NBN, WN, SN (Piccolo Speech only)
• Only Piccolo Speech:2 external inputs for speech audiometry
• MIC input for live speech audiometry

SIGNAL SPECIFICATION :

• Attenuator step: 1 dB, 3 dB, 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sine wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: TDH-39 / DD45 / DD65 headphones, ER-3 / IP30 insert earphones
• BC: B-71 bone vibrator (Piccolo Plus / Speech only)

AVAILABLE TESTS :

• Pure Tone audiometry
• Automatic Pure Tone audiometry
• Speech audiometry (Piccolo Speech only)
• QuickSIN™ (optional for Piccolo Speech only)
• Master Hearing Aid (Piccolo Speech only)

VAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• Masking (optional, with “Bone Connectivity” license): NBN, WN

SIGNALS SPECIFICATION :

• Attenuator step: 5 dB
• Presentation: Continuous, Pulsed (1 and 2 Hz)
• Warble: 5 Hz sine wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: DD45 or DD65 headphones, ER-3C insert earphones
• BC: B71 bone vibrator

AVAILABLE TESTS :

• Manual Pure Tone audiometry
• Automatic Pure Tone audiometry (available algorithms: HughsonWestlake, Quick Search, Fixed Intensity)

INTENSITY :

• AC: -10 to 100 dB HL
• BC: -10 to 60 dB HL

FREQUENCY RANGE :

• 125-8000 Hz

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• Masking: NBN, WN

SIGNALS SPECIFICATION :

• Attenuator step: 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sin wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: TDH-39 / DD45 headphones, ER-3 / IP30 insert earphones
• BC: B-71 bone vibrator (Plus only)
• Insert masking earphone: IME-100 (Plus only)

AVAILABLE TESTS :

• Pure Tone audiometry
• Auto threshold (modified Hughsone-Westlake)

PATIENT-OPERATOR COMMUNICATION :

• Talk over: built-in or external (optional) microphonePatient response trigger

INTERNAL DATABASE :

• Up to 100 patients both AC and BC thresholds

CALIBRATION :

• Validity: 12 months, All the parameters set through the device software

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• 2 external inputs for speech audiometry
• MIC input for live speech audiometry
• Internal input (flash memory) for speech audiometry
• (Harp Plus only) Masking: NBN, WN, SN

SIGNALS SPECIFICATION :

• Attenuator step: 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sin wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: TDH-39 / DD45 headphones, ER-3 / IP30 insert earphones
• BC: B-71 bone vibrator Free field Insert masking earphone: IME-100

AVAILABLE TESTS :

• Pure Tone audiometry
• Auto threshold (modified Hughsone-Westlake)
• Speech audiometry (2 channels)
• ABLB
• SISI: automatic score; 1 dB increment (5 dB for familiarization)
• Stenger, with pure tone or speech stimulation
• Tone decay, with 60 or 120 sec. duration
• DLI, with increments between 0 and 5 dB
• 2 independent channels Master Hearing Aid

MONITOR SIGNAL  :

• Both channels monitored through the built-in speaker or monitor headset (included)

INTERNAL FLASH MEMORY (ON LY HARP PLUS)  :

• Used to store the speech material (.wav format)
• Capacity: 4 GB (more than 6 hours of speech
• Speech material upload: through ATIT software

INTERNAL DATABASE :

• Up to 100 patients both AC and BC thresholds (only pure tone exams

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble tone
• 2 external inputs and USB audio for speech audiometry
• MIC input for live speech audiometry
• Masking: NBN, WN, SN

SIGNALS SPECIFICATION :

• Attenuator step: 1, 2 and 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sin wave modulating signal

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: Headphones (TDH-39 / DD45)
• HF headphones (HDA-300 / DD450)
• Insert earphones (ER-3 / IP30)
• BC: B-71 bone vibrator
• Free field Insert masking earphone: IME-100

AVAILABLE TESTS :

• Full audiometric evaluation: pure tone, auto thresholding, and high-frequency audiometry
• Speech assessment: srt, wrs, and loudness levels.
• Additional options: stenger, quicksin®, visual/play audiometry.

CALIBRATION  :

• Validity: 12 months
• Separated calibration tables for each type of transducer (AC, AC-INS, AC-HF, INS-MASK, BC, FF)
• All the parameters stored in the device through a dedicated software

COMPUTER INTERFACE :

• Connection: USB (driverless)
• Compatible software: Inventis Maestro
• Minimum requirements: refer to Maestro software specifications

POWER SUPPLY :

• External medical grade power supply.
• AC consumption: 100-240Vac 50-60Hz 0.9-0.34A
• DC output: 6V, 2A cont.

AVAILABLE SIGNALS :

• Stimulus: pure tone, warble ton
• 2 external inputs for speech audiometry
• MIC input for live speech audiometry
• Internal input (flash memory) for speech
• audiometry
• Masking: NBN, WN, SN

SIGNALS SPECIFICATION :

• Attenuator step: 1, and 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz or custom freq.), Single Pulse (with selectable duration)
• Warble: 5 Hz sin wave modulating signal.

AVAILABLE OUTPUTS AND TRANSDUCERS :

• AC: TDH-39 or DD45 headphones, ER-3 or IP30 insert earphones, HDA-300 / DD450 headphones (Piano Plus / Plus VRA only)
• BC: B-71 bone vibrator Free field
• Insert masking earphone: IME-100

AVAILABLE TESTS :

• Pure Tone audiometry
• Auto threshold (modified Hughsone-Westlake)
• Speech audiometry (2 channels)
• ABLB
• MLB
• SISI: automatic score; 1 dB increment (5 dB for familiarization)
• DLI, with increments between 0 and 5 dB Tone decay, with 60 or 120 sec. duration Stenger, with pure tone or speech stimulation 2 independent channels Master Hearing Aid TEN test
• QuickSIN test (optional)

CALIBRATION  :

• Validity: 12 months
• All the parameters set through the device software

COMPUTER INTERFACE :

• Connection: USB (driverless)
• Compatible software: Inventis Maestro

POWER SUPPLY :

• External medical grade power supply
• AC consumption: 100-240Vac 47-63Hz 0.9-0.34A
• DC output: 6V, 4,16A cont

Features at a Glance: :

• State of the art tablet audiometer
• Audiometer built-in easyTone headphone
• Overall pass/refer result
• Easy transition from screening to threshold determination
• Guided workflow preventing operator errors and saving time
• Protocol wizard for easy set up
• Room noise monitoring
• Direct printout of results or share to e-mail
• Companion Software for screening list management

Features at a Glance: :

• Handheld air-conduction screener
• Easy one hand operation
• Exceptionally lightweight and portable
• Test frequencies: 500, 1000, 2000 and 4000 Hz
• Pure tone signal from 15 dB HL to 50 dB HL
• Battery operated (2 AA batteries)
• Automatic power off
• AC headset DD45
• Optional AC noise-enclosure headset DD65 v2

Features at a Glance: :

• Air conduction audiometer
• 11 frequencies from 125 Hz to 8000 Hz
• Test signals from -10 dB HL to 100 dB HL
• Pure tone and warble tone (pulsed or continuous)
• Portable and lightweight, only 980 g
• Use with 3 AA batteries, power supply or USB cable to PC
• MA 25e version including automated Hughson-Westlake test, talk forward and MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management
• Optional carrying case

Features at a Glance: :

• Air conduction audiometer
• 11 frequencies from 125 Hz to 8000 Hz
• Test signals from -10 dB HL to 100 dB HL
• Pure tone and warble tone (pulsed or continuous)
• Compact and portable with built-in handle
• Integrated compartment for storing accessories
• MA 27e version including automated Hughson-Westlake test, talk forward and MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management

Features at a Glance: :

• Air conduction audiometry
• Optional bone conduction audiometry
• Compact and portable with integrated handle and compartment
• Large color display for easy operation
• Automated Hughson-Westlake included
• Internal database stores 500 patients (3500 tests)
• Optional thermal printer
• Optional MAICO Sessions PC software connectable with OtoAccess® or Noah patient database for easy data management

Features at a Glance: :

• Air Conduction and Bone Conduction
• Pilot-Hearing test for children
• SISI, Stenger and automatic Hughson-Westlake tests available
• Intuitive handling of the clearly presented user interface
• Operate at your convenience with your mouse or keyboard
• Small, fast, flexible and highly mobile
• Display and store your results in one second
• Includes MAICO Patient Database
• Easily expandable to future developments

Features at a Glance: :

• Air, bone and speech 2 channel audiometer
• Mixing signals and channels independently
• Connection of one or two AC transducers, BC and sound field testing
• Optional high frequency audiometry up to 16,000 Hz
• Advanced diagnostic test functions
• Included Special Tests: Pure Tone Stenger, Speech Stenger, MHA
• Optional Extended Special Tests: SISI, Tone Decay, ABLB, MLB, Langenbeck test
• Full colorful display with simple screen design
• Small footprint for ease of portability
• Easy access to talk forward, talk back and monitor functions
• Direct printout of the results, store report as PDF or quickly transfer to MAICO Sessions PC software
• Optional MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management

Features at a Glance: :

• More than just an auditory test: Hearing – Understanding – Implementing
• 2-in-1 screening device: pure tone audiometry and select picture audiometry
• Pilot Hearing Test is available in different languages
• Colorful child-friendly device
• Full frequency range for pure tone testing (125 to 8 kHz)
• Large colorful LCD display screen
• Thermal printer optional
• MAICO Sessions PC Software optional
• OtoAccess® or Noah database optional

Features at a Glance:

• Quickly test up to 8 people at the same time
• Intuitive testing with TREMETRICS HearCon Software
• Optional room monitor for analyzing ambient noise
• Talk-over communication to any or all test subjects
• Portable and lightweight at 500 grams
• Automatic voice-instructions in multiple languages
• Automatic or manual testing with customizable settings
• Bio-Acoustic Simulator for daily calibration and checks
• Optional wall mount and insert ear phones

Features at a Glance:

• Optional high frequency probe tones(678, 800 and 1000Hz)
• High resolution color display
• Powerful 3D image of tympanometric data across a full range of frequency and pressure.
• DP range 0.5-6 kHz
• TE range 1-4.5 kHz (60-84 dB SPL)
• Features Impedance, ABRIS, OAE, and Wideband Tympanometry.
• Utilizes "Endless Airflow" pressure control technology.
• Offers high-resolution recordings.

Features at a Glance:

• +400 to -600 daPa
• High resolution color display
• Direct printing to PC printers
• User-defined protocols
• HDMI output
• Child distraction function
• Internal memory that can store up to 500 clients and 50,000.

Features at a Glance:

• -400 to +200 daPa
• Ipsilateral Reflexes (optional)
• 30 patient memory
• Tympanometric data transfer
• Advanced print layout wizard
• Personalized and combined reporting
• Advanced report page
• Patient and session handling

PROBE TONE :

• Frequency: 226 Hz, 678, 800, 1000 Hz (Clarinet Plus only)
• Level: 85 dB SPL (@ 226 Hz), 80 dB SPL (@ 678 Hz), 75 dB SPL (@ 800, 1000 Hz)

ADMITTANCE MEASUREMENT SYSTEM :

• Measurement range:
  -2.0 to 8.0 mmho (@ 226 Hz)
  -4.0 to 16.0 mmho (@ 678, 800 and 1000 Hz)

AVAILABLE TESTS :

• Tympanometry (automatic and manual)
• Multi-component tympanometry (Plus only)
• Acoustic Reflex Threshold (automatic and manual)
• Acoustic Reflex Decay
• Acoustic Reflex Latency
• Eustachian Tube Function (intact and perforated TM)

ACOUSTIC REFLEX DECAY TEST

• Ipsilateral and contralateral stimulation
• Non-acoustic stimulation
• Test duration: 10 sec or 20 sec (selectable)

PROBE TONE :

• Frequency: 226 Hz; 1000 Hz (Flute Plus w/optional license and Flute HF)
• Level: 85 dB SPL (@ 226 Hz); 75 dB SPL (@ 1000 Hz)

VOLUME RANGE :

• 0.2 to 8.0 ml (at 226 Hz)
• 0.9 to 16 mmho (at 1000 Hz) (Plus and HF)

PRESSURE SYSTEM :

• Rotary type pump with endless flow
• Manual pressure adjustment available in the tympanometry and reflex tests (Flute Plus only)

AVAILABLE TESTS :

• Tympanometry (automatic)
• Acoustic Reflex Threshold (automatic)
• 2 Automatic test sequences (tympanometry + reflex test)
• Only Flute Plus
• Tympanometry (manual)
• Acoustic Reflex Threshold (manual)
• Acoustic Reflex Decay
• Eustachian Tube Function (intact TM)
• Only Flute HF
• Eustachian Tube Function (intact and perforated TM)

ACOUSTIC REFLEX DECAY TEST

• Ipsilateral and contralateral stimulation
• Non-acoustic stimulation (Flute Plus only)
• Stimulus ON-Time: selectable from 0.5s to 2.5s
• Stimulus OFF-Time: selectable from 0.5s to 2.5s
• Four different tests available:
  Automatic threshold
  Fixed intensity
  Growing intensity
  Manual mode (Flute Plus only)

AUDIOMETER SPECIFICATIONS AVAILABLE
SIGNALS

• Stimulus: pure tone, warble tone
• Masking: NBN, WN, SN
• Only Viola Plus:
  2 external inputs for speech audiometry
  MIC input for live speech audiometry
  Internal input (flash memory) for speech audiometry

SIGNALS SPECIFICATION :

• Attenuator step: 5 dB
• Presentation: Continuous, Pulsed (0.5, 1 and 2 Hz)
• Warble: 5 Hz sin wave modulating signal

AVAILABLE OUTPUTS AND TRASDUCERS :

• AC: TDH-39 / DD45 headphones, ER-3C/ IP30 insert earphones
• BC: B-71 bone vibratorInsert masking earphone: IME-10

PATIENT-OPERATOR COMMUNICATION :

• Talk over: built-in or external microphone
• Talk back (Viola Plus only): through built-in
• speaker or monitor headset (included); patient
• microphone included
• Patient response trigger

DEVICE SPECIFICATIONS :
PRINTER

• Optional integrated thermal printer
• Paper size: 112 mm

CALIBRATION

• Validity: 12 months
• All the parameters set through the device software

AUDIOMETER SPECIFICATIONS
AVAILABLE OUTPUTS AND TRANSDUCERS

• AC: supra-aural DD45, insert earphones ER-3C

AVAILABLE STIMULI AND LEVELS :

• Stimulus: pure tone (see table)
• Attenuator step: 5 dB
• Intensity: -10 to 100 dB HL
• Frequency range: 125-8000 Hz

DEVICE SPECIFICATIONS :
PRINTER

• Optional integrated Bluetooth thermal printer
• Paper dimensions: 58mm

CALIBRATION :

• Validity: 12 months
• All the parameters set through dedicated software.

COMPUTER INTERFACE :

• Connection: USB (driverless)
• Compatible software: Inventis Maestro

DISPLAY :

• Type: Graphical color TFT LCD, capacitive touchscreen
• Size: diagonal 2.8”, 43.2 x 57.6 mm
• Resolution: 240 x 320 x RGB

POWER SUPPLY :

• Internal battery: Lithium-Ion rechargeable battery
• Battery life: more than 4 hours of continuous use
• Main Unit: 5Vdc, 1.4A
• External adapter USB dedicated: 100-240 Vac, 50/60 Hz, 0.3-0.15A, responding to IEC 60601-1 standard

MECHANICS

• Size (WxDxH): 65 x 44 x 240 mm / 2.6 x 1.8 x 9.5 in
• Weight: 340 g / 12 oz

DPOAE :

• Minimum DPOAE level criterion: L1 – 70 dB and 4096 samples
• Stimulus levels L2: 30 to 65 dB SPL; step size: 5 dB

TEOAE :

• Stimulation nonlinear protocol , level 85 db and
• Sample rate: 48 kHz

Additional features :

• Optional Database Software (MIRA) - Data Management test results to patient records with many EMR systems

Technical Specifications :

• dimensions: 150 x 210 x 45 mm
• weight- 475g
• Display: 240 x 320 pix
• resistive touch screen,
• real time-clock,
• Power consumption: max. 2 W.

Technical Specifications

• Device dimensions: 150 x 72 x 55mm
• Device weight: ca.170g
• Cable length: 180 cm
• Power supply: USB powered
• Safety standards IEC 60601-1 and IEC 60601-1-2

Features at a glance:

• Very fast and reliable middle ear measurements
• Probe tone 226 Hz
• Optional high frequency probe tone 1 kHz
• Reflex frequencies 500 Hz, 1 kH z, 2 kHz, 4 kHz (ipsi- and contralateral)
• Reflex decay testing (ipsi- and contralateral)
• Eustachian tube function (ETF) test for intact and perforated eardrums
• Automatic tests – self-explanatory to use
• Full color, high resolution display
• Stores more than 1000 measurements
• Optional thermal printer
• Optional MAICO Sessions PC Software connectable with OtoAccess® or Noah patient database for easy data management

Features at a glance:

• High resolution and quick screen transitions
• Full touch-based interface for intuitive handling
• Handheld pen probe
• Probe tones 226 Hz, optional 1 kHz
• Acoustic reflex stimuli 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsilateral and optional contralateral)
• MI 26 Version comes with included AC & optional BC audiometry available
• Optional MAICO Sessions PC software connectable with OtoAccess® or Noah patient database for easy data management
• Built-in printer

Features at a glance:

• High resolution and quick screen transitions
• Full touch-based interface for intuitive handling
• Diagnostic shoulder box probeProbe tones 226 Hz, 678 Hz, 800 Hz and optional 1 kHz
• Acoustic reflex stimuli 500 Hz, 1 kHz, 2 kHz, 4 kHz, BB, HP, LP (ipsilateral and optional contralateral)
• Reflex Decay test (ipsilateral and contralateral)ETF test for intact and perforated eardrumstouchTymp MI 36 includes AC & BC audiometryBuilt-in printer
• Optional MAICO Sessions PC software connectable with OtoAccess® or Noah patient database for easy data management

Features at a glance:

• Easy, fun middle ear testing for children
• Focused, engaged patient means less retesting
• Provides test results within seconds
• Full touch-based interface for intuitive handling
• Customizable to suit individual needs
• Built-in printer or data transfer to PC

• 2 fixed DPOAE protocols
• 2-5 kHz
• 3 out of 4 for a pass
• Test time of 2 or 4 seconds per frequency
• The diagnostic version of the OtoRead™ gives you the option to also test up to 12 kHz.
• Internal storage of up to 500 tests

• Five wheels for great mobility
• Handle that makes it easy to maneuver
• Retainers for equipment and accessories
• Integrated storage bin for waste
• Storing bracket for Sera

• The frequency range for TEOAE is 500 Hz to 5.5 kHz.
• FFT (fast fourier transform) view (up to 8 kHz).
• For DPOAE you can test within the frequency range of 500 Hz to 10 kHz.
• Lyra is fully powered by the USB connection, eliminating the need for an external power supply.

• Solid and noise immune hardware
• Modular platform
• Unique pre-amplifier technology ensures optimum performance in electrically hostile environments
• Intuitive interfaces, well-designed layouts, freedom to customize settings
• Bayesian weighting
• Residual noise calculator
• Fmp calculator
• All the features of EP15

DPOAE :

• narrow band noise around 2f2-f1
• Frequency ratio f2/f1: 1.22.
• Minimum DPOAE level criterion: L1 – 70 dB
• Safety standards - EN 60645-1 class 4

TEOAE :

• low Noise detection upto 85 dB peSPL
• Stimulation nonlinear protocol , level 85 db and Sample
• rate: 48 kHz

Additional features:

• Stores up to 1000 patients (EMR System)
• PC-SW database (M IRA) test results via USB
• Optional Database Software - Data Management

Technical Specifications:

• Device dimensions: 209 x 98 x 52 mm
• weight -500g
• Display: 240 x 320 pixel;
• resistive touch screen
• real time-clock
• Power consumption: max. 2 W

Features at a glance:

• Screening and diagnostic measurements with TEOAE and/or DPOAE
• Fast automatic OAE screening with Pass/Refer results and graphical displays
• 2 DP and 2 TE protocols for screening devices, 5 DP and 3 TE protocols for diagnostic devices
• High noise immunity for operation in normal clinical environment
• Lightweight, small earprobe
• Sharp OLED display
• Optional wireless printer

Features at a glance:

• Fast and accurate ABR + OAE Hearing Screening
• Powerful automated ABR Screening method with CE-Chirp® stimulus
• Intuitive user interface and large colour touchscreen
• Pocketsized and lightweight
• Optional HearSIM™ patient database and device manager
• Optional easyCart for an organized mobile workplace

Features at a glance:

• Fast and accurate ABR + OAE Hearing Screening
• Powerful automated ABR Screening method with CE-Chirp® stimulus
• Intuitive user interface and large colour touchscreen
• Pocketsized and lightweight
• Optional HearSIM™ patient database and device manager
• Optional easyCart for an organized mobile workplace

Features at a glance:

• Fast and accurate ABR + OAE Hearing Screening
• Powerful automated ABR Screening method with CE-Chirp® stimulus
• Intuitive user interface and large colour touchscreen
• Pocketsized and lightweight
• Optional HearSIM™ patient database and device manager
• Optional easyCart for an organized mobile workspace

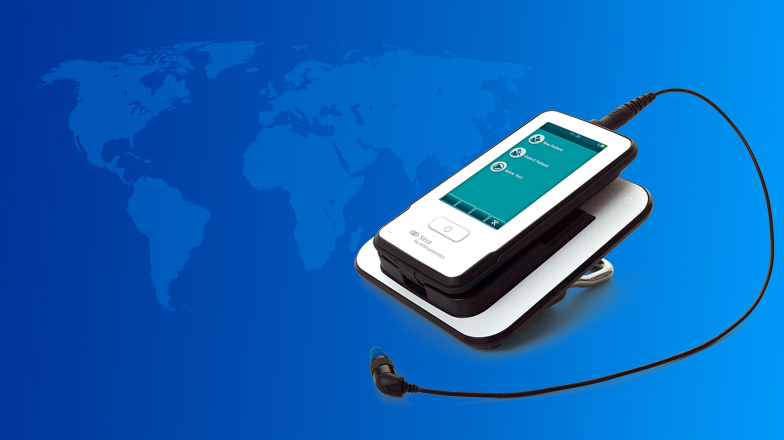

Features at a glance:

• Unique BERAphone® with integrated electrodes
• Saves costs for disposables
• Patented ABR detection algorithm for testing within seconds
• On-screen guidance; i.e. reconnect electrodes
• Round ear cushion for larger heads (optional)
• Truly intuitive user interface
• Small and lightweight
• Large color touchscreen for comfortable navigation
• Very short boot-up time and long battery life
• Cradle for wireless charging
• Optional HearSIM™ patient database and device manager
• Optional easyCart for an organized mobile workplace

Features at a glance:

• Fast and automated ABR-screening, reliable results within seconds
• Eco-friendly BERAphone® with reusable electrodes
• Automatic skin impedance check ensuring precise and clear signal conditions
• Cutting-edge PC software for easy operation
• Guided screening process with on-screen instructions
• Flexible data exporting options for tracking

Features at a glance:

• Fast and automated ABR Screening with CE-Chirp® stimulus
• Simultaneous binaural screening
• Automatic skin impedance check ensuring precise and clear signal conditions
• Guided screening process with on-screen instructions
• Flexible data exporting options for reporting

Specifications:

• Probe Performance Check: Assess sound pressure, speaker symmetry, and probe fit for accuracy.
• Calibration: Perform in-ear calibration with volume adjustment for precision.
• Noise Detection and Rejection: Identify narrow-band noise, use weighted averaging for noise calculation, and reject artifacts.
• Employ 1.22 f2/f1 ratio at 48 kHz with L1 – 70 dB criterion and 4096-sample interval. Utilize diverse stimulus modes for multi-channel DPOAE, auto frequency adjustment (1-8 kHz), and default SNR stop criteria for efficient testing.

Additional feature:

• Simultaneous measurement on left/right ear with 2 probes
• Entertainment mode for all OAE modules
• Optional Database Software for easy data management and result export
• Noah compatible, facilitating interoperability with EMR systems

Technical Specifications:

• Device dimensions: 209 x 98 x 52 mm, 500 g, with a 240 x 320 pixel 3.5” touch screen, real-time clock, sound generator, and USB.
• Output voltage and nominal impedance: 5 Vpp, 32 Ω at the headphone socket.
• Power consumption: Maximum of 2 W.
• Memory capacity: Up to 1000 patients and approximately 1000 tests (dependent on test type).

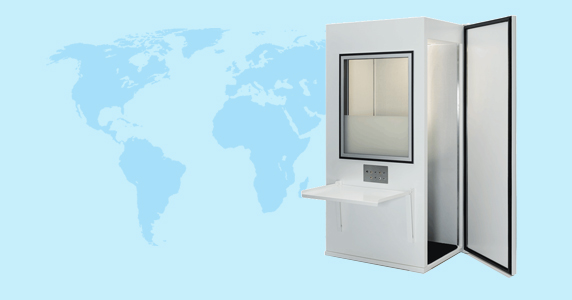

• The Audiometry booth should have a minimum size Normal 4’ X 4’ X 6’7”, L x B x H
• 100 mm thickness of Acoustic Panels Fabrication - Wall, roof, floor, and door
• 18 gauge Cr sheet - Pannels
• Height density ¾” thickness and locking with 22 gauge perforated GI Sheets.
• The Audiometry booth inside the sound level is below 35db
• Tray beneath glass window
• Fold-down feature
• Supports over 10 kg weight
